Why would I want to convert my install of Mechwarrior 2 to the 3Dfx version?

Although the Titanium version of Mechwarrior 2 looks nice, it does have a few pitfalls. The game is running based on the MW2: Mercenaries engine, meaning that some of the heat and weapons stats have been changed. With the addition of full texture mapping on the ground and sky, some of the worlds in the game have changed as well, altering the feel of the levels. Graphics weren't the only issue, as the highly-lauded music tracks have been cut to a fraction of their original length.

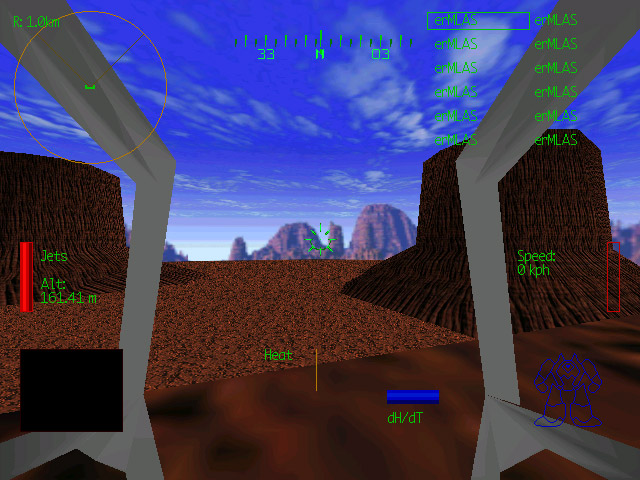

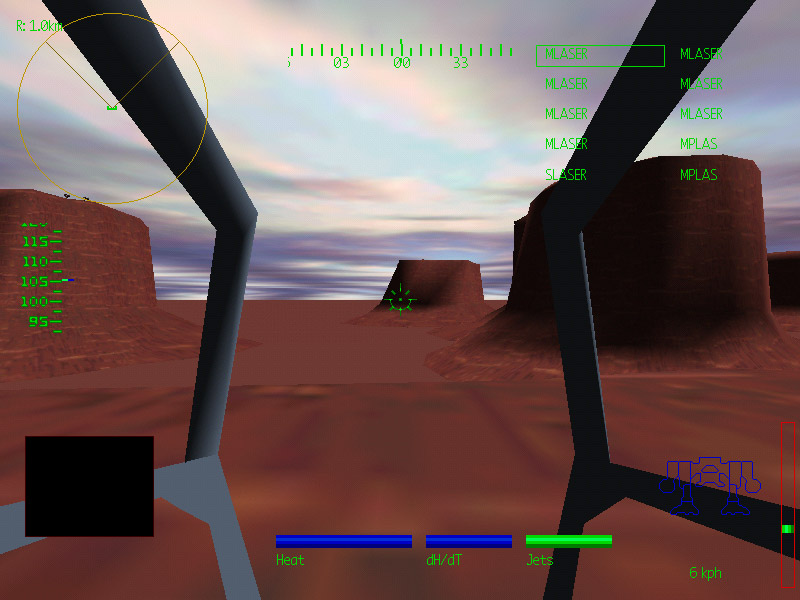

Mechwarrior 2 Original Cockpit Mechwarrior 2 3dfx Cockpit Mechwarrior 2 Titanium Cockpit
The original (left), 3dfx (center), and Titanium versions of Mechwarrior 2 in Clan Wolf's Scorching Sand mission.

But before Titanium, Mechwarrior came in several card-specific 3D-accelerated versions, featuring texture-mapping, higher-poly mechs, and animated skies. Even with these updates, the levels still retained their original color schemes and feel.

Activision never released these versions as patches and when searching Amazon or eBay, it's hard to tell whether you're getting a DOS, Windows, or 3D-accelerated version. So rather than gamble over which version you'll get, let's take a Windows 95 (or Pentium) version of the game and convert it to the 3dfx version.

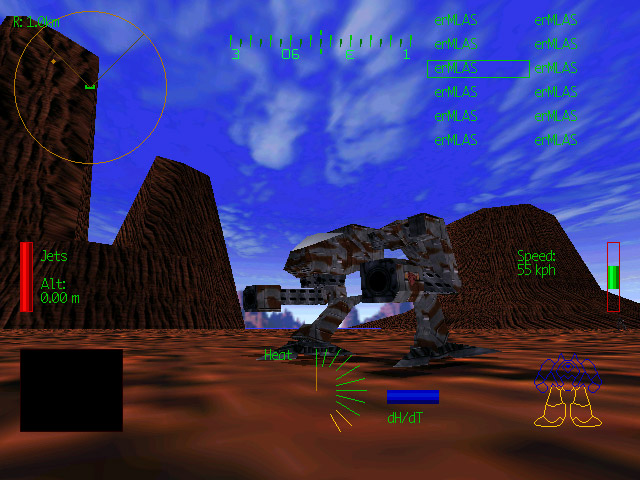

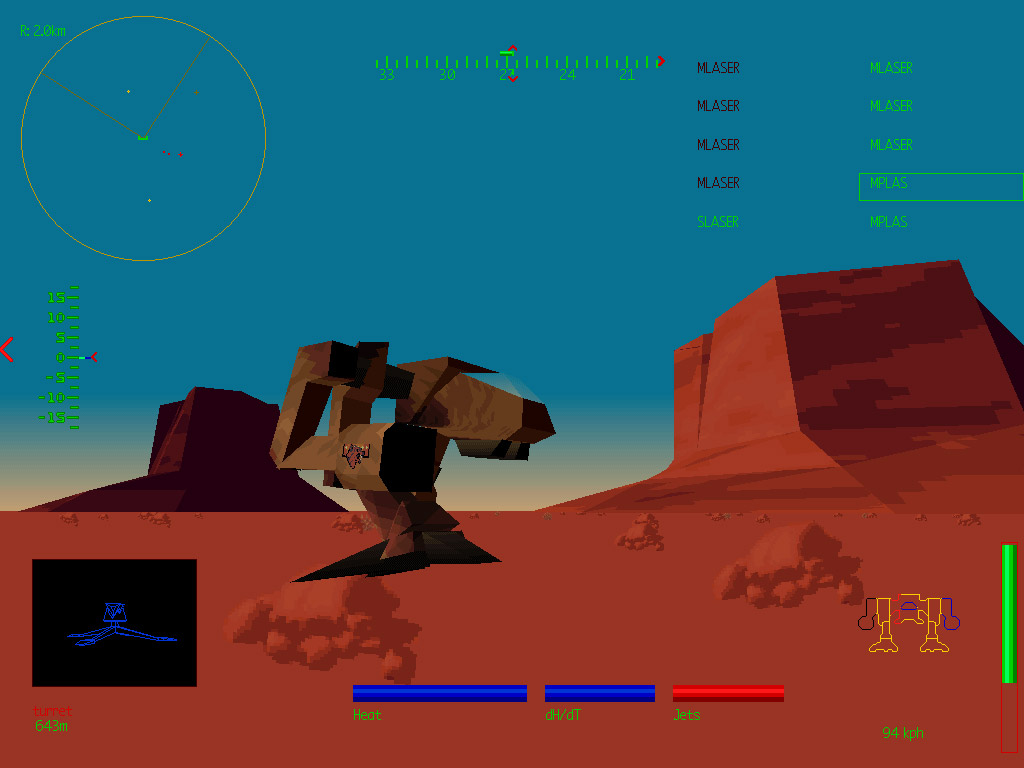

Mechwarrior 2 Original Outside Mechwarrior 2 3dfx Outside Mechwarrior 2 Titanium Outside
Outside of the mech in the original (left), 3dfx (center), and Titanium versions of Mechwarrior 2 in Scorching Sand.

As it turns out, there's only a difference of 5 files between the 3-accelerated versions of Mechwarrior 2 and those that are not.

They are:

  • MW2.Dll
  • MW2.MIP - 3dfx only
  • MW2.PRJ
  • MW2SHELL.DLL
  • SKYGND.PAR - 3dfx only

Three of the files are different and contain updates to the code. The other two files are brand-new for the 3Dfx version.

How do I convert the normal Mechwarrior 2 to the 3Dfx (non-Titanium) version?

Here's the method that I used to convert Mechwarrior 2 to the 3dfx version. I used the Mechwarrior 1.1 disc with both Dos and Windows versions on it. Mileage may vary. Let's get cracking:

  1. Install the Windows 95 version of Mechwarrior 2.
  2. Get the Windows 95 version running first. (Back in the XP days, I patched it using the old Warp 3 XP Patch.)
  3. Back up your MW2.DLL, MW2.PRJ, and MW2SHELL.DLL files
  4. Download the Mechwarrior 2 3Dfx conversion files (22.1 MB, zipped) from here.
  5. Copy all of these files into your Mechwarrior 2 folder (Typically :C:\Program Files\Activision\Mech2")
  6. Unless you have a 3dfx card installed, you'll need a way to enable glide. The best bet is to use a wrapper of some sort. dgVoodoo works well with Mechwarrior 2. Personally, the 1.5 beta 1 version works best for me. Download it and copy glide.dll and dgVoodooSetup.exe into your Mechwarrior install directory.
  7. Go back to the Warp 13 page, then download and install the Mw2 Hook patch.

If everything goes to plan, you should be running the 3dfx-version of Mechwarrior 2.

If the frame rate is slow, there are usually a couple of things causing this. First off, make sure that "Chunky Explosions" are turned off. This really helps things out in general.

The other thing to do is to turn off the enemy view at the left corner of the screen. Hit "F4" a couple of times to turn it off. The frame rate dramatically improves, but you can't see how damaged an enemy is unless enhanced imaging is on.

Another nice feature of using this method is that if you wish to switch back to the normal version of Mechwarrior 2, just copy your original files from Step 3 back into your Mechwarrior 2 directory. To switch back to the 3Dfx version, copy the conversion files back over.

Last updated: 11/21/24
